Price: $12.99
(as of Oct 02, 2024 15:05:12 UTC – Details)
Specifications:
Pins: 24
Installation Type: SMT Type
Cable Terminal Type: Solder
Body Material: Hard Plastic
USB Compatibility: 3.1
USB Type: Type C (Male)
Assembly: Push Fit (glue if required)
Contact Resistance: 30mΩ
Insulation Resistance: 100mΩ Min
Withstand Voltage: 250V AC
Service Life: 10000 Cycles
Rated Current: ≤3A
Module interface:
V: Positive power supply
D-: Data negative
D+: Data positive
G: Negative pole of power supply
Package List:

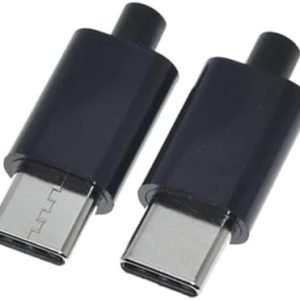

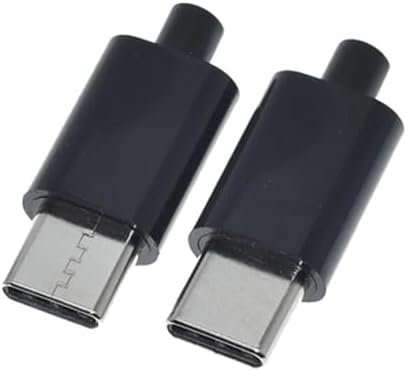

– 20Set USB 3.1 Male Type C Plug Connector
Please Note:
1.You need to solder the cable by yourself.
2.The housing cover not 100% compatible with the connector. you need to do the innder overmold to fix it.

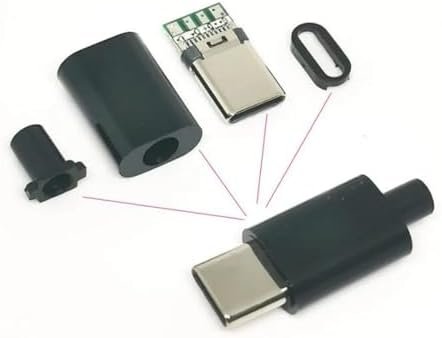

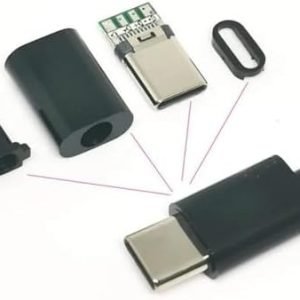

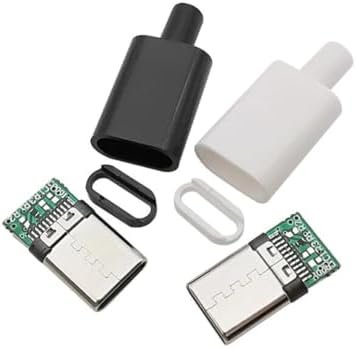

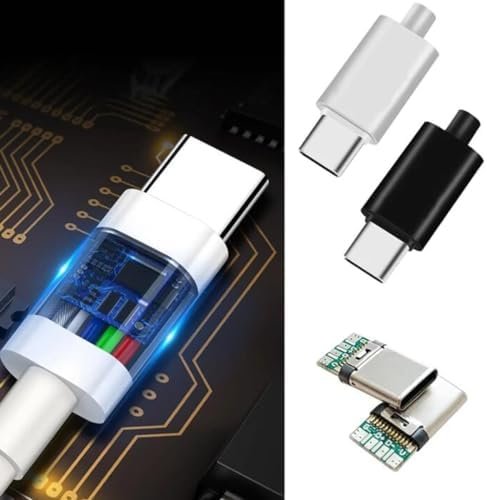

Package Includes — 20pcs Type C male receptacle connectors with PCB board, 10pcs black housing and 10pcs white housing, can be combined to form Type C connectors with housing for DIY data cable interface. Placed in a transparent plastic box, easy to carry and use.

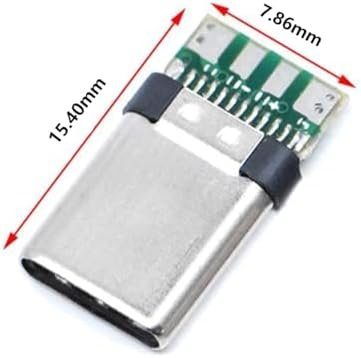

Stable Connection — Made of copper material, which ensures good electrical conductivity. The included PC board makes it easy to solder the cables yourself.
Forward and Reverse Pluggable — The Type C interface has a data transfer speed of up to 5Gbps, allowing you to synchronize movies, music and more in seconds. This connector has an easy reversible feature that allows it to be plugged into a USB-C female port both front and back.
Small and Sturdy — The USB 3.1 Type C plug connector features a 56k resistor for Type-C power + data, suitable for DIY your own USB adapter or electronic power port maintenance.
Wide range of applications — Ideal USB 3.1 male and female connectors for computer use. Such as MP3 players, digital camcorders and cameras, PDAs, GPS, cell phone printers/photo frames, mice, keyboards, flash drives or cables.
